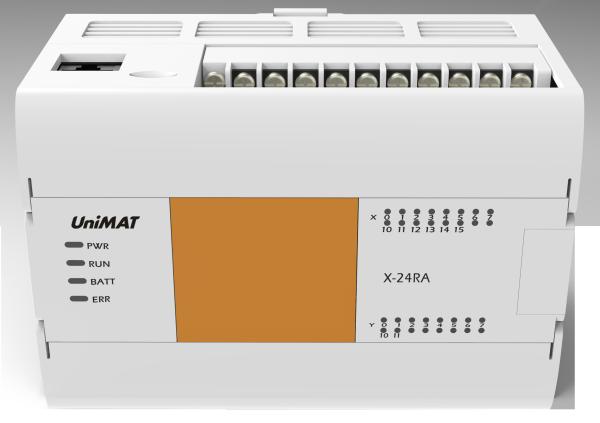

Name: High Performance Unimat Industrial Automation PLC 14 points Input
Brand: Unimat
Price: 1 USD

Brand Name : Unimat

Model Number : X-24RA

Certification : CE

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T

Supply Ability : 6000pcs/month

Delivery Time : 2-8 days

Packaging Details : standard carton

Input : 14 points

input type : PNP/NPN

Output : 10 relay output

Voltage range : 5-30VDC

Contact Now

High Performance Unimat Industrial Automation PLC 14 points Input

China PLC Low Cost PLC

Power supply
Working voltage(Vac)	Min	AC 100V
	Typical	AC 220V
	Max	AC 240V
Limited Input Voltage		AC 85V~AC100V, AC 240V~AC264V
Input Current		60/30mA(CPU,120/240VAC)
Surge Current		20A,264V AC时
Fuse		2A 60V Slowly melting
24V power supply(Max)		300mA
Digital input
Build in input		14 points fixed
Input type		PNP/NPN
Rated Voltage		24VDC,high speed 6.4mA(X0~X5),common 4mA(X6~X27)
Maximum continuous permissible voltage		30V DC
Surge voltage		35VDC,0.5 second
Logic 1[minimum]		15VDC,High speed 3.7mA(X0~X5),common 2.5mA(X6~X27)
Logic 0[Max]		5VDC,1mA
lowable leakage current [maximum]		1mA
Isolution		yes
Photoelectric isolation		500VAC 1 min
High speed counter input rate		Single-phase 200KHz[3]; AB phase 100KHz[3], supporting 4 times counting
Digital output characteristics
Build in output		10 relay output
Output type		dry contact
Rated Voltage		220VAC/24VDC
Voltage range		5～30VDC
		5～250VAC
Surge Current(Max)		5A 4s 10% Duty ratio
Rated current per point (Max)		2A
Lamp load [maximum]		30W DC/200W AC
Response time (24V, 2K load)		10ms
Turn on resistance [contact]		0.2Ω(New maximum)
Pulse frequency[Max]		1Hz

Dimension
